Integrate Active Directory with ClearPass


We need to Integrate Active Directory with ClearPass when we doing EAP-PEAP authentication otherwise if we using EAP-TLS its not need to add AD server to Clearpass


Go to Server Configuration and then select your Clearpass Server from the list and then Select Join AD Domian



Then Filled the AD server Information and in here it needs AD server Administrator User name and Password



Now we Success fully add the AD server to Clearpass now we I ll configure the AD server as a Authentication Source for the Clearpass

For that Go to Authentication ---- Source  and click Add




Give the name for the Clearpass and select type as a Active Directory from the drop down list

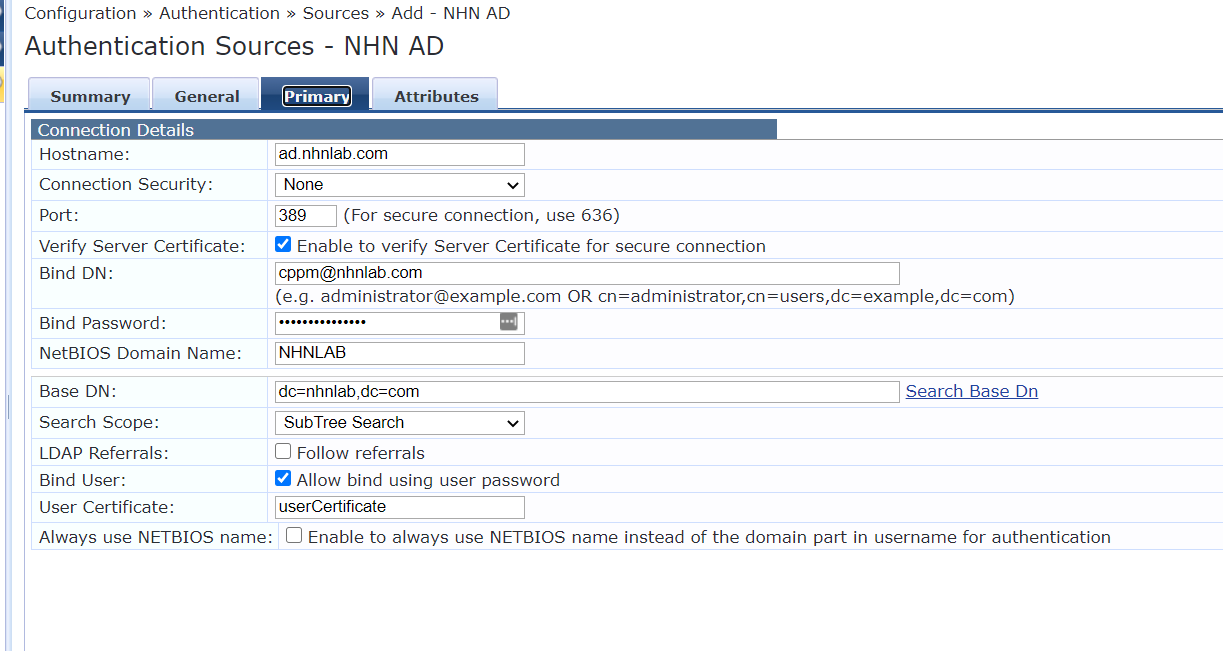

In the Primary Tab you have to give the information of your clearpass server in here you need a service type account for bind DN this is used for read the directory attributes from the AD server




In the attribute click edit and modify tab and from here you can define witch attribute you need to authenticate users . When you Select Roles you can see those Attributes as a Roles in Access Tracker
