Mobility Master Redundancy - Part 1



Mobility Master Redundancy - Part 1

  • Mobility Master will be the Main component that can manage Multiple controllers together. The redundancy of the mobility master should be highly considered when it is coming to enterprise wireless networks. Today we are going to see how we can configure the redundancy between mobility Masters

Configuring VRRP



  • Those are the main steps that need to follow the configure the VRRP you have to do the same configuration in the other Mobility Master also
  • Some valuable commands to do the troubleshooting the VRRP mention below

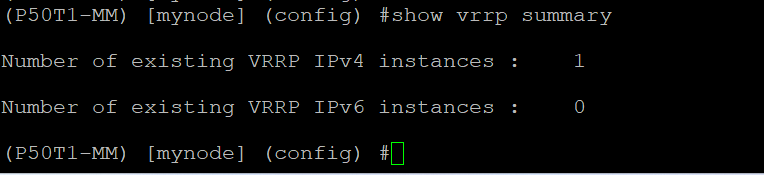

Show VRRP summary


This command will show you how many VRRP instances are configured in the mobility Master

Show VRRP



This will show the status of the vrrp instances and summary details of the vrrp like IP, MAC, State, Priority etc

Show VRRP stats all




This will provide the status details of the VRRP

In the Next Part Lets check What kind of Issues normally happen when we are configuring Mobility Master and How to troubleshoot those issues

Lets see on Next Chapter !!!!!
